20-70965-02 For ZEBRA SYMBOL MC32N0 MC92N0 MC9200 Laser Scan Engine
20-70965-02 For ZEBRA SYMBOL MC32N0 MC92N0 MC9200 Laser Scan Engine
Price
US $4550-4598
Model
20-70965-02
MOQ
1 pack

Review

Description

Product Type: Laser Scan Engine
20-70965-02 For ZEBRA SYMBOL MC32N0 MC92N0 MC9200 Laser Scan Module Adaptive Scanning Laser Scan Engine (100pcs in one pack)

Regulations

Electrical safety: UL 60950-1, EN/IEC60950-1, EN/IEC 60825-1

Laser Classification: Intended for use in CDRH Class II/IEC, Class 2 devices

Drop specification: 2000 g

Working current: 78 mA typical

Light resistance: 8000 Ft Candles (86,111 Lux)

Working temperature: -30℃ to 60℃

Power supply voltage: 3.3V ± 10%



Performance parameter

Anti-decoding: Decoded

Scan mode: single line

Supported interfaces: SSI Control over TTL Serial on a 12-pin ZIF connector

Scanning angle: Wide (default): 47° (typical); Medium: 35° (typical); Narrow: 10° (typical)

Scan rate: 104±12 scans/sec (bidirectional)

Decoding ability: 1D



Physical parameter

Size: 11.75mm H x 21.6mm W x 15.5mm D

Weight: 7.6g



Other features

1. Large working range from near contact to 200 in. /508 cm

2. Small and lightweight

3. Patented Liquid Polymer scan element with lifetime warranty

4. Die cast zinc chassis and single board construction

5. 104 scans per second

6. Programmable scan angle

7. Bright scan line and enhanced aim mode

8. Built-in remote system performance monitoring

9. Low power consumption

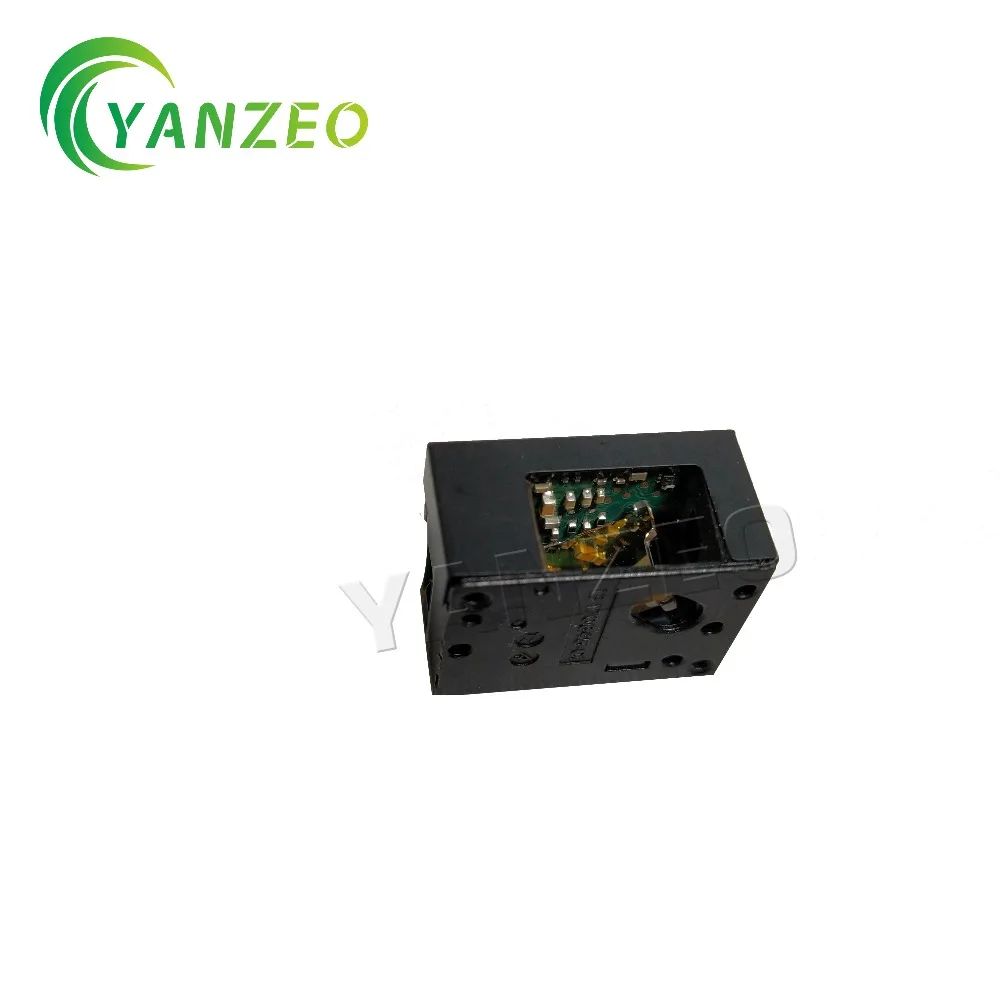

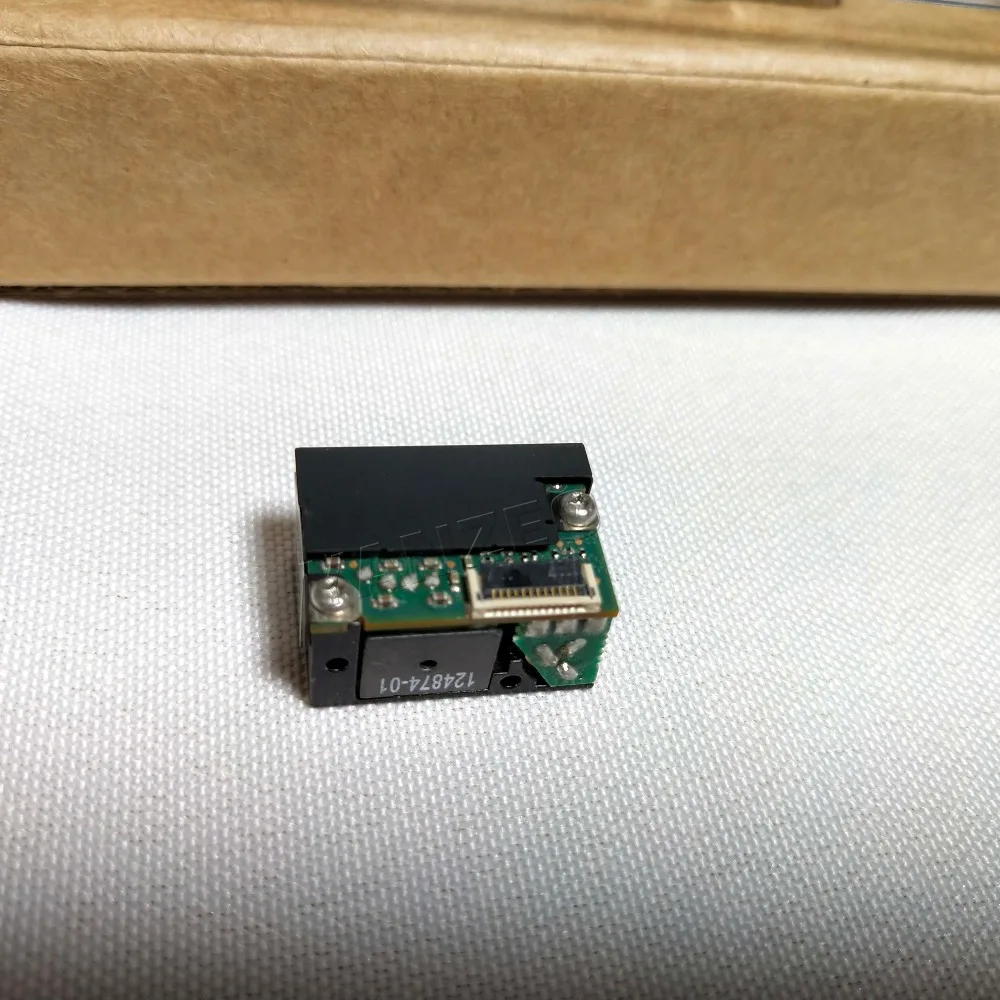

20-70965-02 (4)-120-70965-02 (3)-1

20-70965-02 (2)20-70965-02 (1)


If you have any question please contact us,Thank you!
